Then put the bent metal piece on and into the slot on the rubber strip. When putting the white plastic piece back on the back of the PCB assembly, hook the long rubber strip on it first.Solder the switches back in place but swapping the K101 switch with the K103 switch.The switches all go in the same way, the feet come out the left and right sides.The ☌/☏ switch will be labeled on the "yellow" side as K103.Remove the switch using a soldering iron. The busted switch will be labeled on the "yellow" side as K101 and will be in between two LEDs.Remove the single screw holding the PCB down and take it off.Remove the screws in the white plastic and take off the white plastic.

Remove the metal piece that's over the white plastic.Looking at the bottom of the toaster oven and about an inch in, there is a hole cut in the bottom and a single screw pointing "up" toward the top of the toaster oven.

I suggest starting with the one in the bottom corner and work your way to the top, then get the two that are at the top. 3 are on the side and two are along the top.

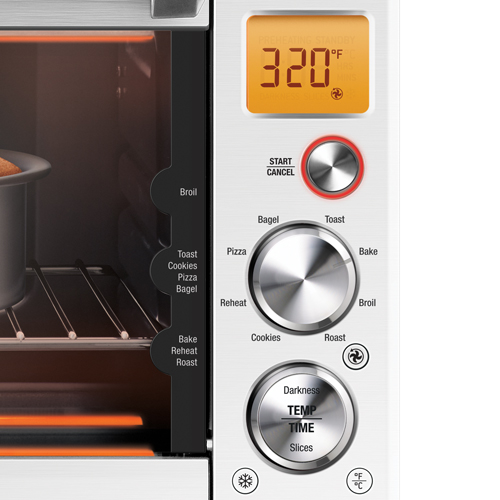

Above the control panel and on the left side (same side as the control panel) there are 5 black screws.

When looking from the back, the top and right side are slotted and held in place by tension.

Next, slide the back of the toaster oven down by approximately 1/2" and remove it.

There's a lot of them and they're all the same size.

Look at the back of the toaster oven and remove every screw that's facing the back.

These are the only screws you should need to remove from the bottom. There is one screw in each corner on the bottom.

After you have the feet off, remove the screws underneath that they were covering up.

Keep this in mind for the re-assembly portion.

The plastic part is slotted and will need to slide back in place when you put it back together.

There are two screws on each foot and another two in the middle.

Start by flipping the toaster oven over and removing the feet.

#Breville smart oven pro timer not working how to#

Here's how to get to that board (you'll need hands and arms similar to that of an 8-year-old child): I ended up un-soldering the button used to switch from ☏ to ☌ and swapped that switch with the On/Off switch. The fix is to replace that switch or order a new circuit board. It appears that one of the legs in the switch no longer connects or shorts and it causes it to trigger the "Convection" button instead. The issue is with the push button on the "Control PCB". I had this same problem and fixed it today.
